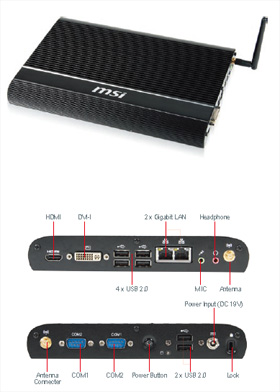

MS-9A55

  • Dual Channel DDR3 1066MHz/1333/1600 (Non ECC)
  • 2 Independent Displays Supported DVI-I + HDMI
  • 1 x Intel 82579LM GbE LAN PHY
    1 x Intel I210AT GbE LAN
  • ALC886/888 HD Audio CODEC
  • 2 x Mini-PCIe (1 x WiFi 802.11b/g/n with BlueTooth,
    1 x For Expansion)
  • 2 x COM-ports ( COM1&2 RS-232/422/485, 0V/5V/12V)
  • 196mm x 285mm x 33mm
  • Windows 8, Windows 7, Window XP, Linux Fedora 13


FEATURES
  • Slim and Fanless System Design with Mini-ITX board inside
  • Great 3D Graphics Performance for a High Definition Up to 1080p
  • Multiple Video Output HDMI, DVI-I with Dual Independent display
  • Support DirectX10, Shader Model 4.0 and Intel®Clear Video Technology
  • Multi mini-PCIe slots for WiFi, 3G or mSATA card optional usage
  • Flexible Design for Easy Change mini-PCIe Memory and HDD
  • Support 2 x Intel GbE LAN
  • Support iAMT function
  • Support 2 x USB3.0 function


Ordering Information

9S9-9A55-001 827E,320GB HDD, 2G memory, WiFi+BT AW-NB114 module, USA power cord
9S9-9A55-002 827E, 320GB HDD, 2G memory, WiFi+BT AW-NB114 module, EU power cord
9S9-9A55-003 i5 2467M, 320GB HDD, 2G memory, WiFi+BT AW-NB114 module, USA power cord
9S9-9A55-004 i5 2467M, 320GB HDD, 2G memory, WiFi+BT AW-NB114 module, EU power cord
